Junction Box manufacturer and supplier in Bengaluru by Excel Enclosures Bengaluru.

Superior Quality... Engineered Design... Fine Aesthetic Enclosures...

We are serving Automation, Equipments manufacturers, Machine tool manufacturers, Machine rebuilders, SPM manufacturers, Telecommunication, IT, UPS / Stabilizers, Large Project industries and MNC's in INDIA. This is a proprietary business jointly run by an electronics engineer duo - Mr & Mrs Shirke holding a promising 27 & 20 years experience respectively in the concerned industry. Being electronics engineer is an added advantage to customers since it facilitates to up bring the technical requirements & quality of the product.

We Excel Enclosures are leading manufacturer and supplier of Junction Box in Bengaluru | Excel Enclosures Bengaluru.

Features

Welded body with sides, top and bottom closed in 1.2 thk folded CRCA sheet.

IP-67 Ingress protection.

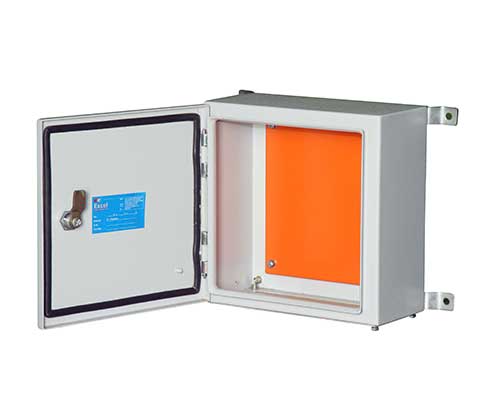

Front single door in 1.2 thk CRCA sheet. With metal hinges, cam locks.

Gland plate optional at bottom in 2.00 thk CRCA.

M-4 tapped Z angles inside for DIN rail mountings (No component mounting plate inside).

These types of enclosures are not suitable to join together, however if needed we can join them.

As side walls are not removable, inter panel seperator is not required here.

Polyethylene gasket on door and polyurethane foam on gland plate, both arefire retardant.

about-image

Standard sizes :

Width	Depth	Height
100mm ~600mm in pitch of 50mm.	80mm ~ 200mm in pitch of 50mm.	100mm ~ 600mm in pitch of 50mm

Protecting Your Technology, Perfecting Your Equipment.
